PMC180 Multifunctional Power Meter MODBUS - RTU , RS485 Communication

Name: PMC180 Multifunctional Power Meter MODBUS RTU RS485 Communication
Brand: Kingsine
Price: 1 USD

PMC180 Multifunctional Power Meter MODBUS - RTU , RS485 Communication Manufactures

Place of Origin : China

Brand Name : Kingsine

Certification : ISO9001,CE

Model Number : PMC180

MOQ : 1PC

Delivery Time : 15 working days

Payment Terms : T/T in advance ,L/C

Supply Ability : 5000PCS/Month

Contact Now

Multifunctional Power Meter MODBUS - RTU , RS485 Communication PMC180

Wide temperature range
Wide angle display
Mini,Easy installation
High performance

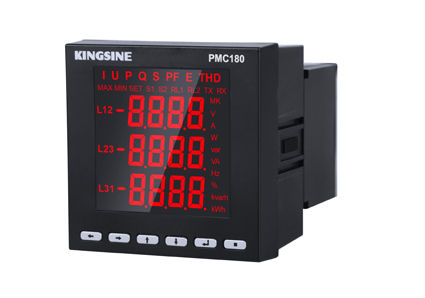

PMC180 three-phase digital power meter

Complete power parameter measurement, energy measurement, 31 order voltage / current harmonic analysis.

Threshold Crossing Alert for power parameter, online monitoring, relay relevance alarm output.

Support 2 channel DI/DO, can configure transducer output.

Support MODBUS-RTU, RS485 communication.

Overview

PMC180 series three-phase digital power meter adopts customized, modularized, high brightness LED display, very beautiful and grand; use low-power microprocessor as core, to achieve all-electric parameter measurement and energy metering. Can optional configure various binary, relay, analog output interface to achieve user’s various needs; integrates RS-485 communication ports, can easily fulfill the integration of various intelligent distribution System. The product function is practical, easy to use and maintenance. Can be used in on-site equipment monitoring and control , provide measure support for electric application experts, provide data basis for SCADA and Smart Grid, provide decision-making basis for effective intelligent energy management.

Function Features

Function Features	PMC180Z	PMC180C	PMC180P	PMC180U	PMC180I
Instantaneous real virtual value
Current Single phase & neutral line	◆		◆		◆
Voltage Line/line & Phase/Line	◆		◆	◆
Frequency	◆
Active power Three-phase & single phase	◆		◆
Reactive power Three-phase & single phase	◆
Power factor Three-phase & single phase	◆	◆
Energy
Active energy	◆
Reactive energy	◆
Power Quality
Harmonic distortion Current & voltage	◆
31 order harmonic analysis Voltage & current	◆
Communication
RS485 /MODBUS protocol	◆	◆	◆	◆	◆
Display
LED display	◆	◆	◆	◆	◆
other
2-channel DI	◆		◆	◆	◆
*2-channel DO	◆		◆	◆	◆
*1 channel AO:4-20Ma	◆	◆	◆	◆	◆
2-channel limits alarm	◆		◆	◆	◆
Support program online upgrade	◆	◆	◆	◆	◆

Technical parameter

Electrical Characteristics
Measurement Type		Three-phase three-wire AC system Three-phase four-wire AC system
		Sampling rate: 64 times per cysle
Data refresh rate		1S
Measurement Accuracy	Current	0.5%
	Voltage	0.5%
	Power	0.5%
	Frequency	0.05Hz
	Active Energy	1.0%
	Reactive Energy	2.0%
	AO	1%
Input voltage characteristics	Measuring voltage	3 X 220/380V(connected directly)
		3 X 57.7/100V(connected by CT)
	Allowed overload	1.2 times / continuous
	Input impedance	1.8MΩ
Input current characteristic	Measuring current	5A or 1A (connected by CT)
	Allowed overload	1.2 times / continuous
	Input impedance	<0.1Ω
Binary input	Working voltage	12~24 VDC or 220VAC(external power supply)
	Input impedance	12KΩ or 120KΩ
	Isolation voltage	2KV
Relay output	Node Type	Mechanical shock
	Node capacity	220 VAC/5A, 30 VDC/5A
4-20mA DC Output	Open circuit voltage	15VDC
	overload capacity	≤500Ω
	Isolation voltage	2KV
Working power supply	AC	85~265 VAC/45-65Hz
	DC	100~300 VDC
	Power dissipation	< 3W
Mechanical properties
Weight		0.5kg
IP protection grade		panel IP52, body IP30
Size		96 X 96 X 72 mm
Operating temperature		-40~70℃
Storage Temperature		-50~85℃
Relative Humidity		5% - 90%RH, No condensation
EMC
Electrostatic discharge interference		IEC 61000-4-2, Level 4
Group of anti-fast transient pulse		IEC 61000-4-4, Level 4
Anti-impact		IEC 61000-4-5, Level 3
Anti-frequency magnetic field		IEC 61000-4-8, Level 3
Electrical insulation performance
Insulation resistance		GB/T13729, >50MΩ
Frequency withstand voltage		GB/T13729, AC 2KV 50Hz /1min
Impulse voltage		GB/T13729, 5KV, 1.2/50us
